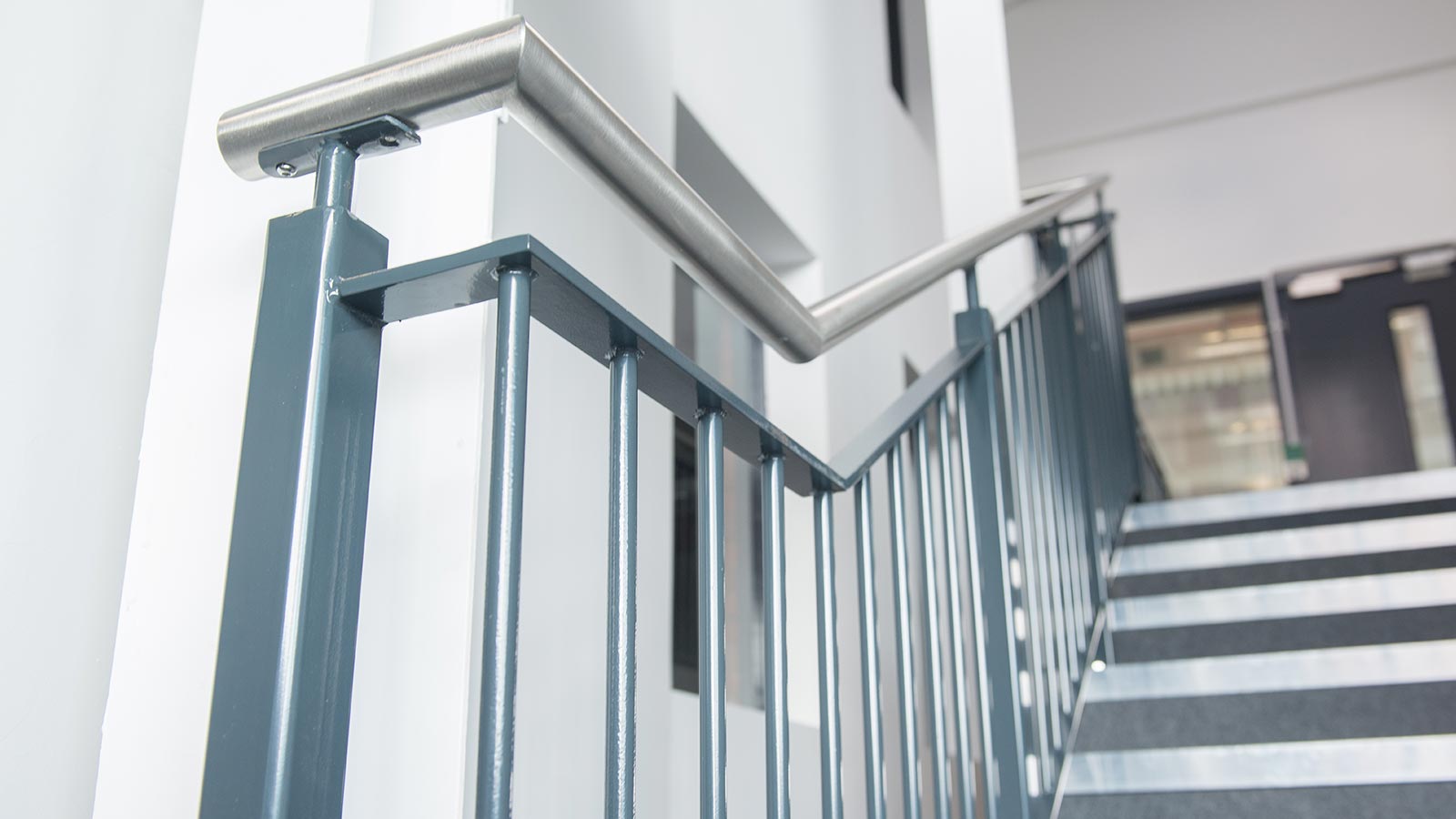

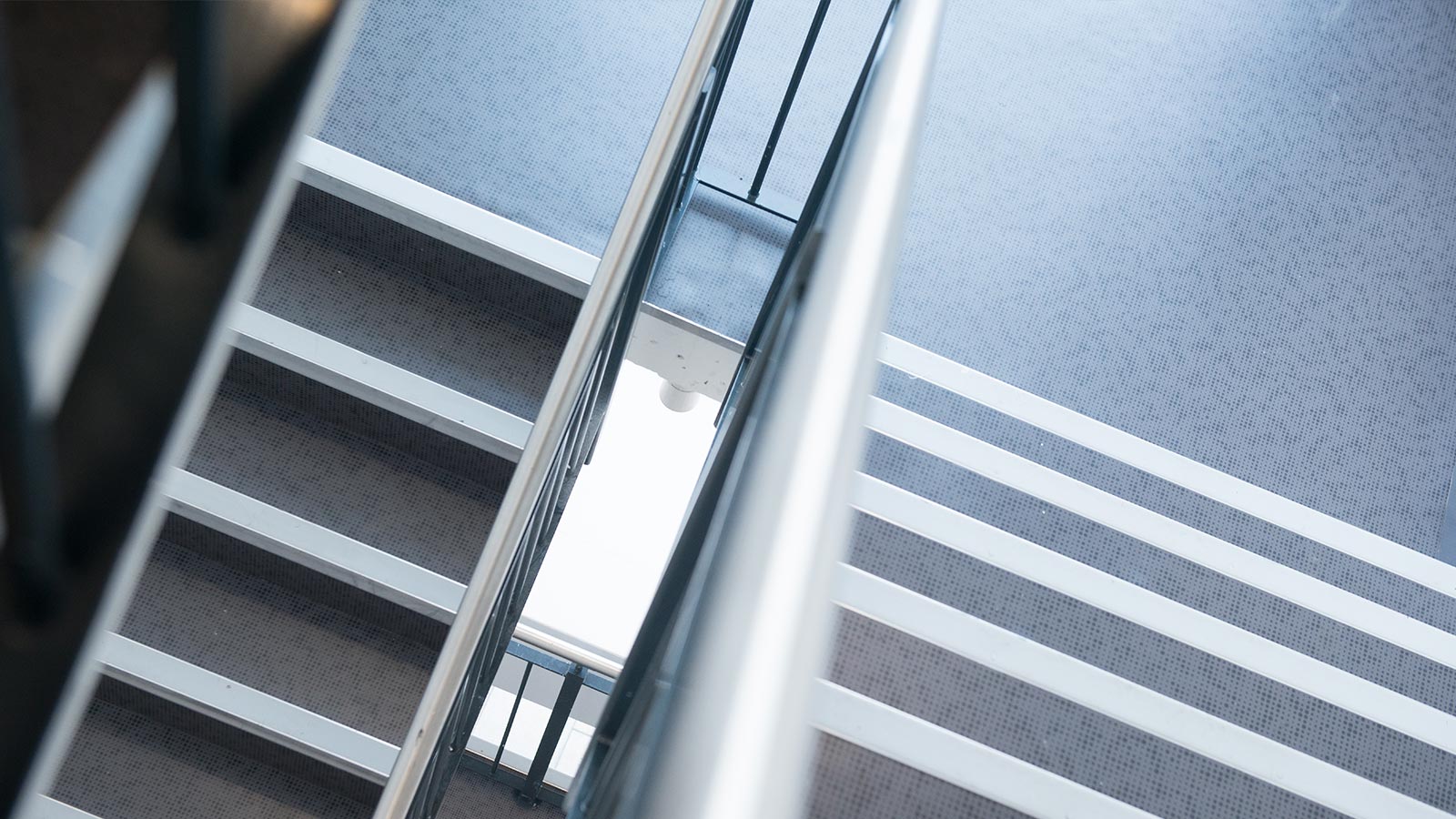

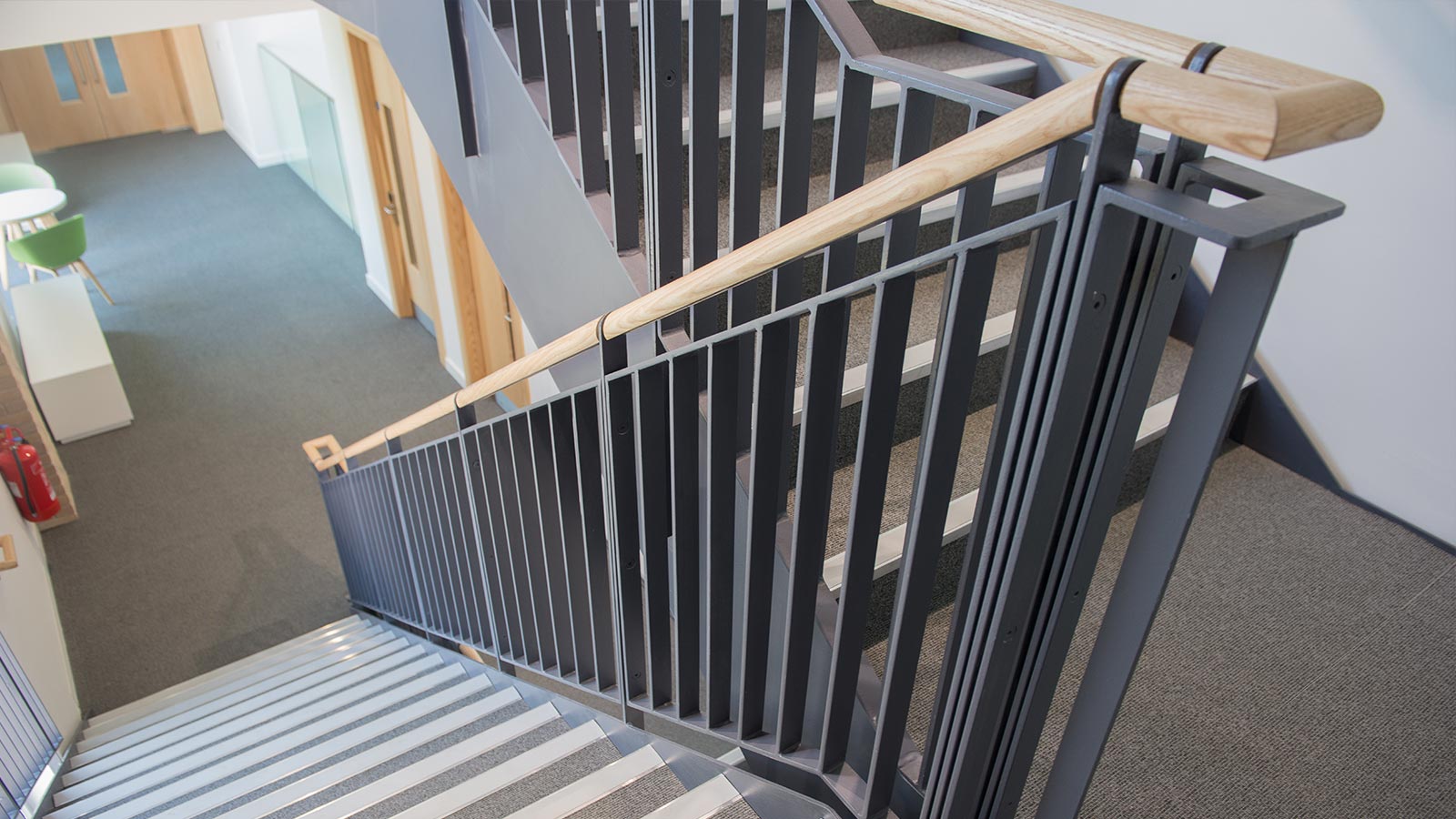

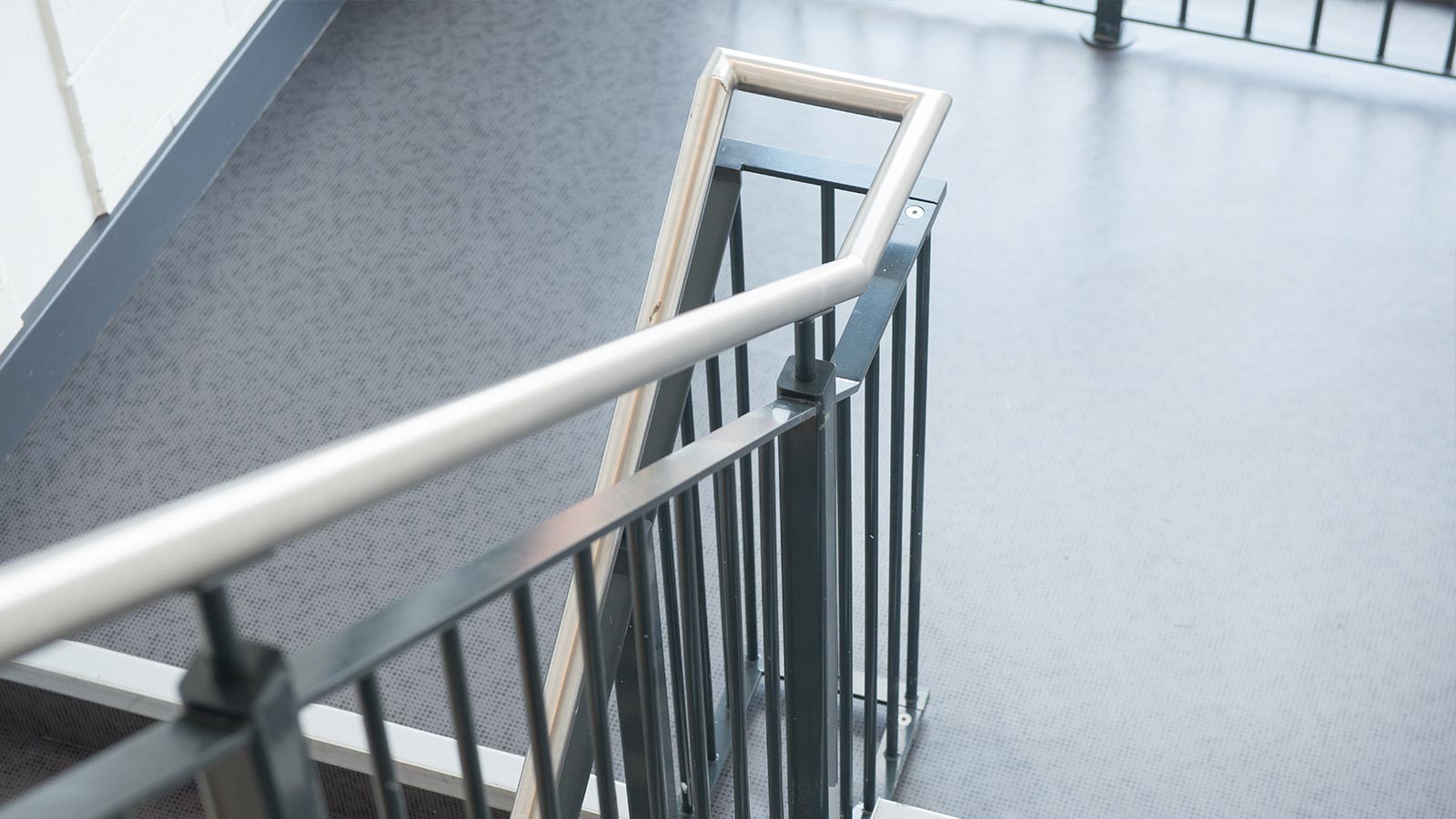

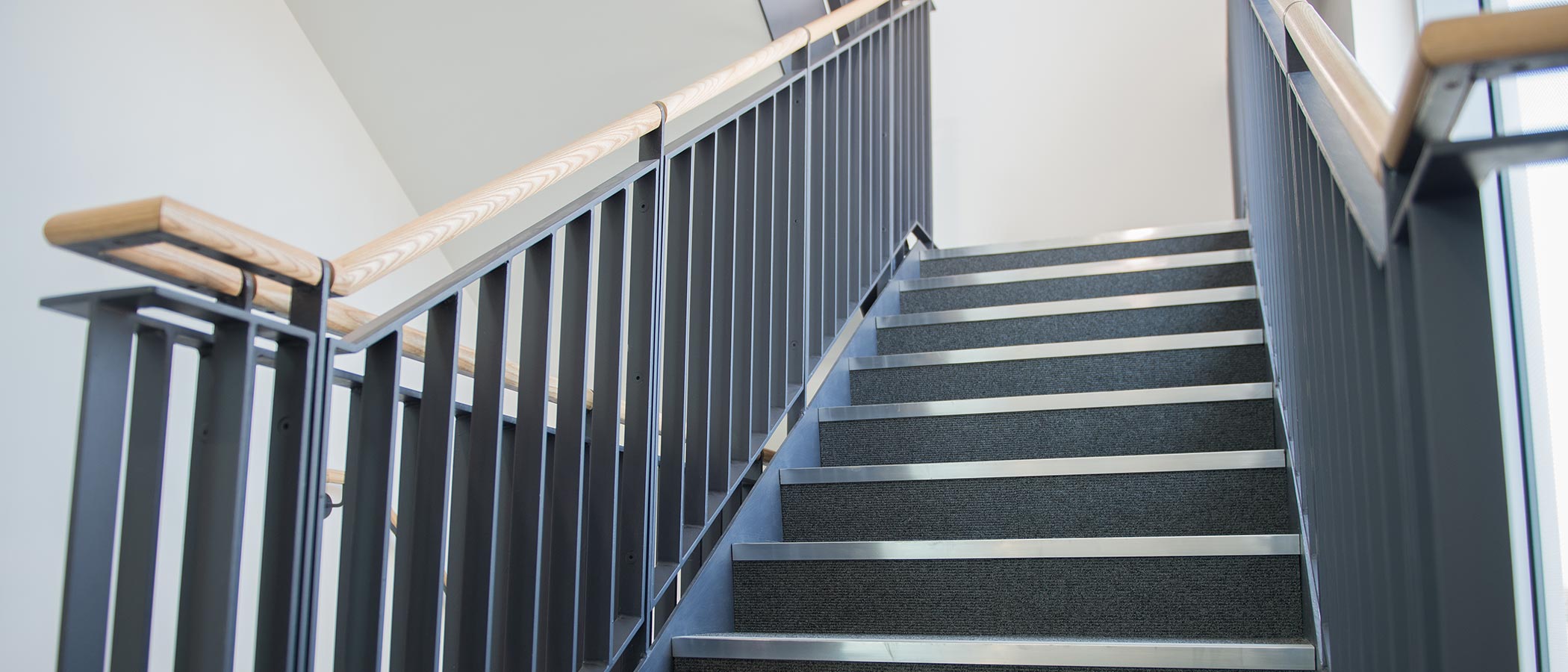

Jupiter Balustrade Range

Jupiter - Infill Bar Range

Our Jupiter balustrade range adds a classic feel to any stair, terrace or balcony and can be manufactured for either internal or external use. Design is totally flexible and is tailored bespoke to your requirements providing a very durable and easy to maintain solution.

Typically heights of balustrade range from 900 to 1000 on the stair flights measured vertically from the tread nosing to the top of the hand rail. Landing balustrade heights typically range from 1000 to 1100 from finished floor level to top of hand rail.

Architectural Metalwork Installations Ltd recommend the landings balustrade heights to be at the maximum of 1100 as good practice.

Diameter of hand rail depends on whether the stair is required for disabled use and loads applied.


Mild Steel Hot Formed
Base Fixing = 140Ø*10 FLT
Bauster = 40*40*4 SHS
Infill = 16Ø Solid Bar
Top/Btm Rail = 40*8 FLT
Top Rail = 42.4Ø*2.6 CHS
Spigot = 16Ø Solid Bar
Bolts = M12Ø 8.8

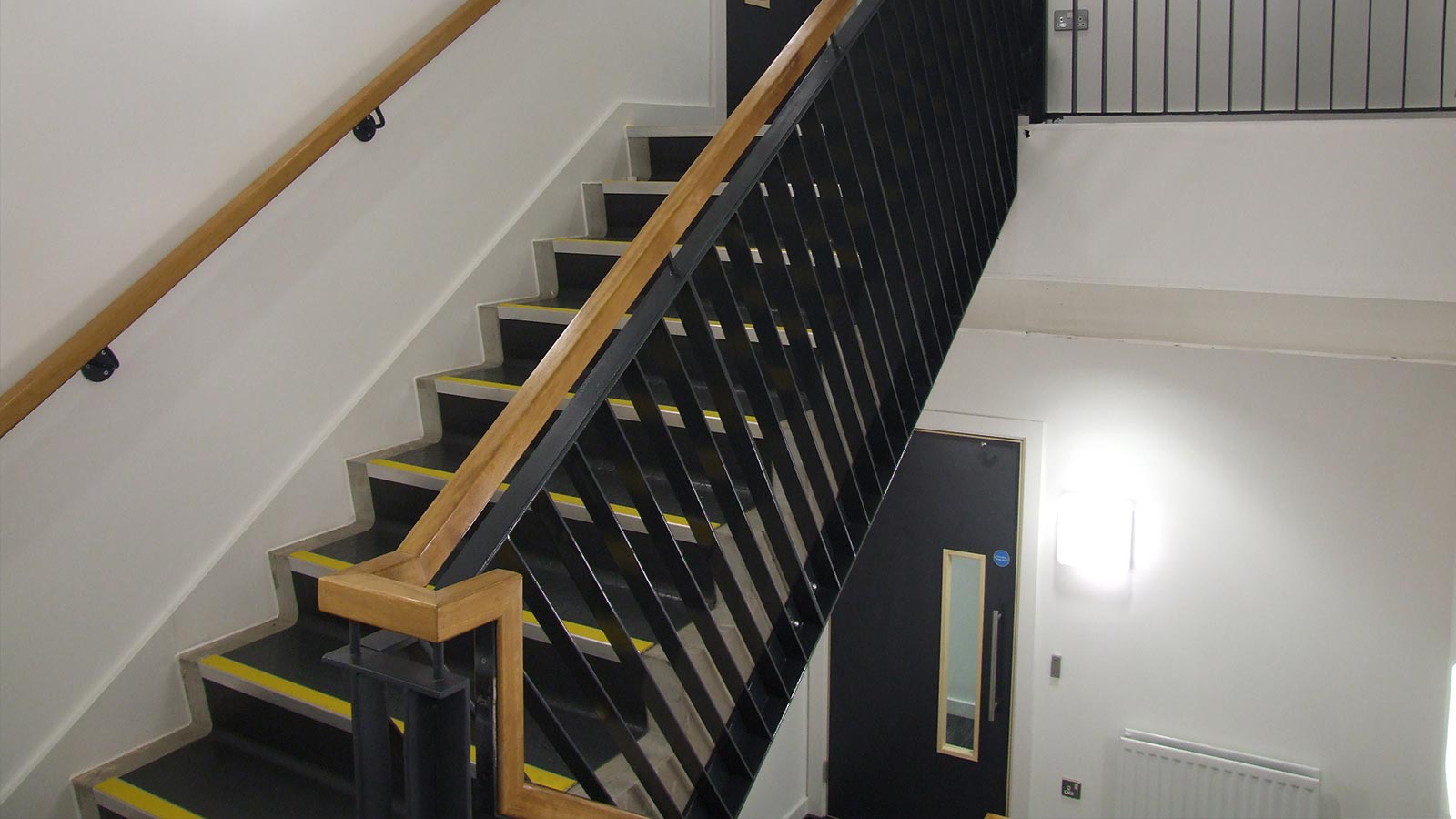

Jupiter - Infill Bar Range

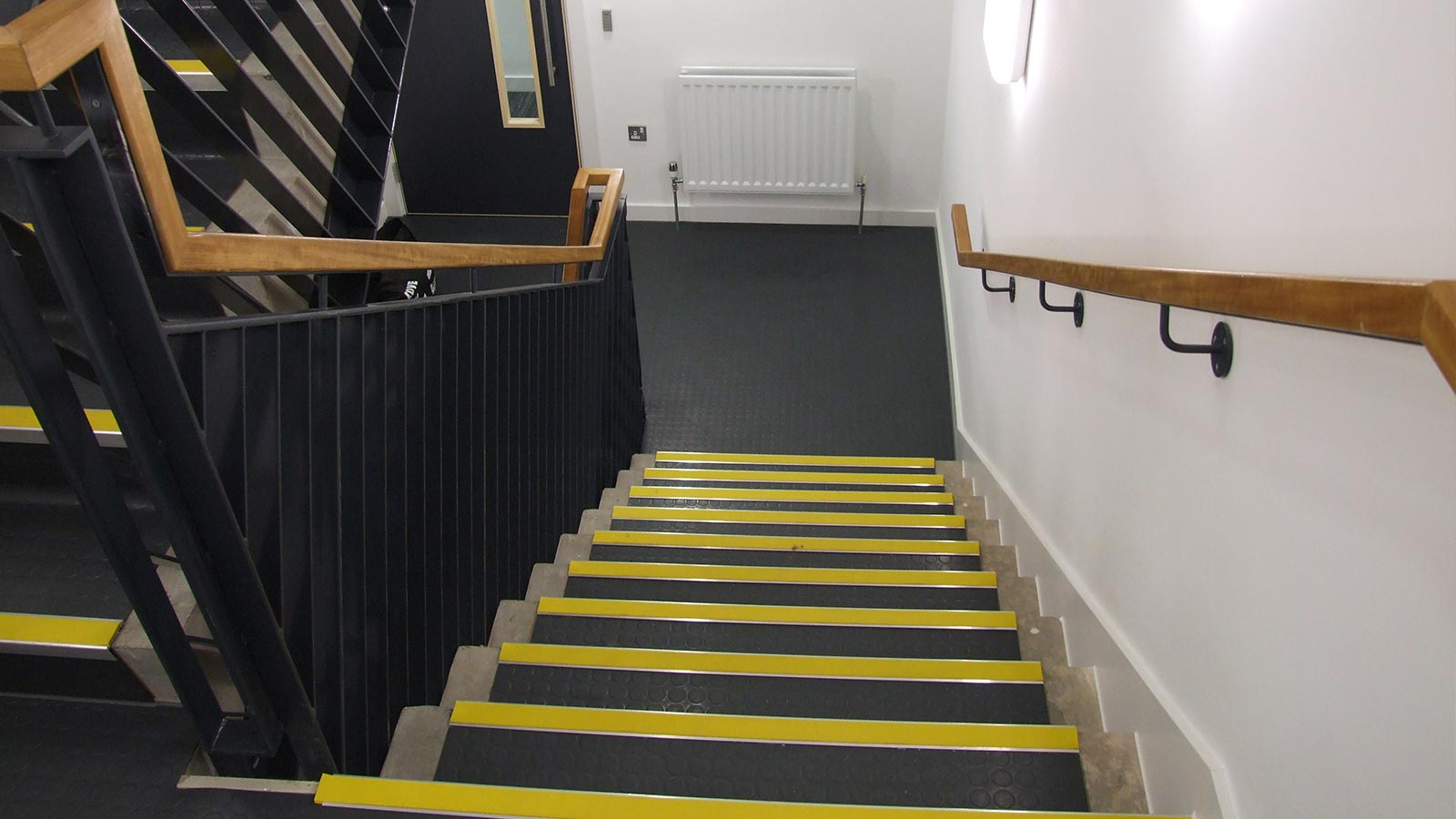

Jupiter - Infill Bar Range

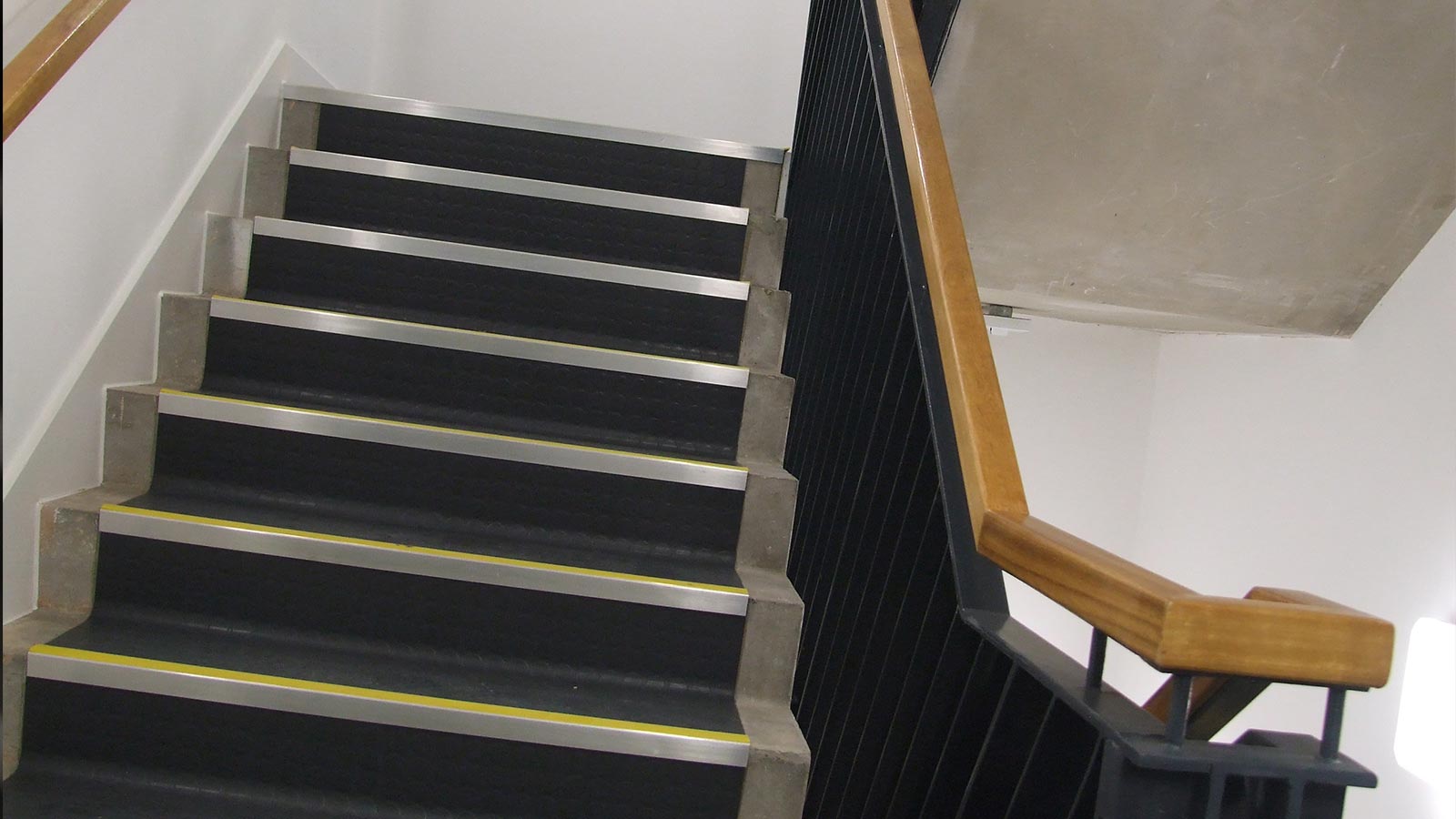

Jupiter - Infill Bar Range

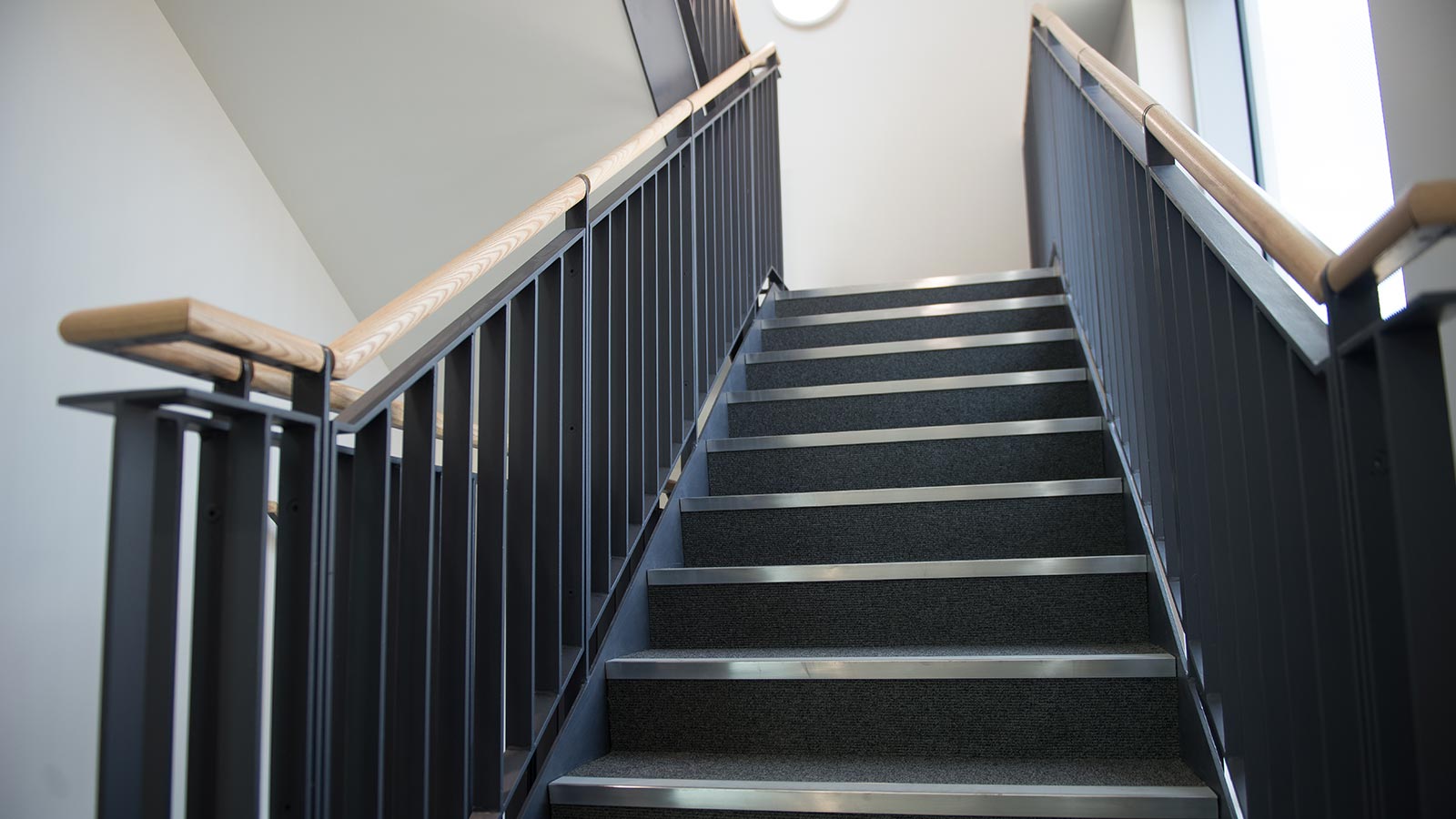

Jupiter - Infill Bar Range

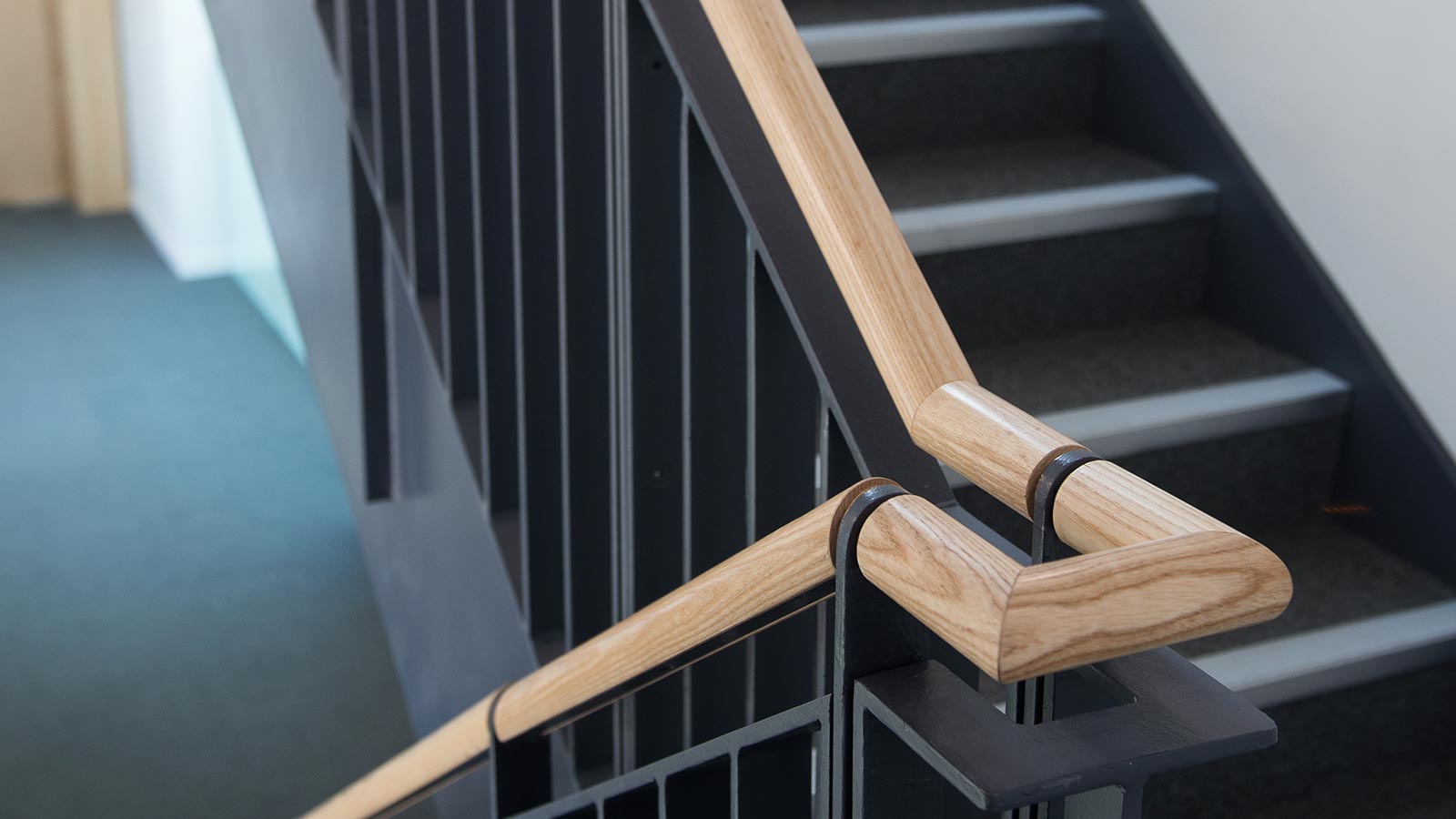

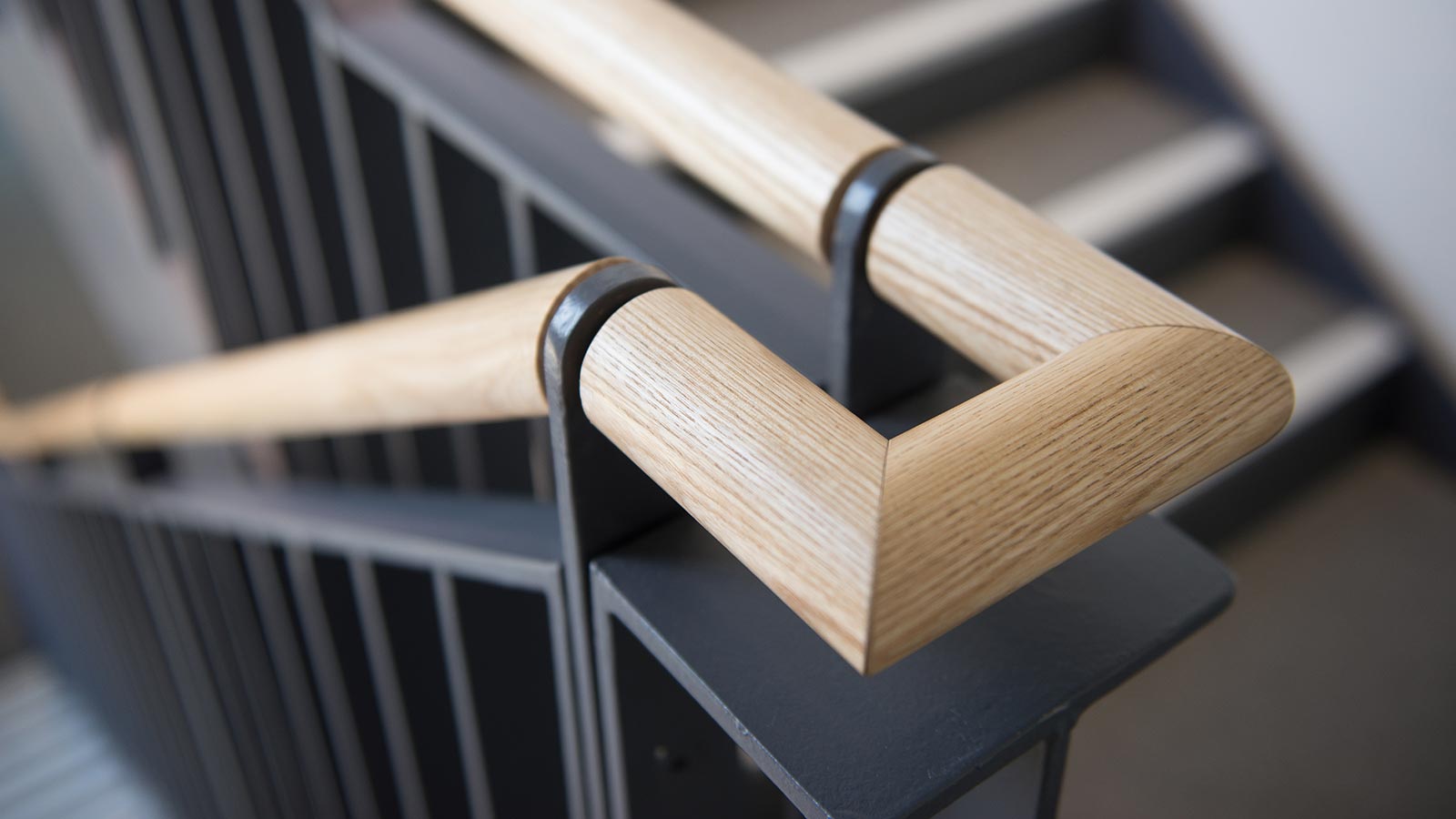

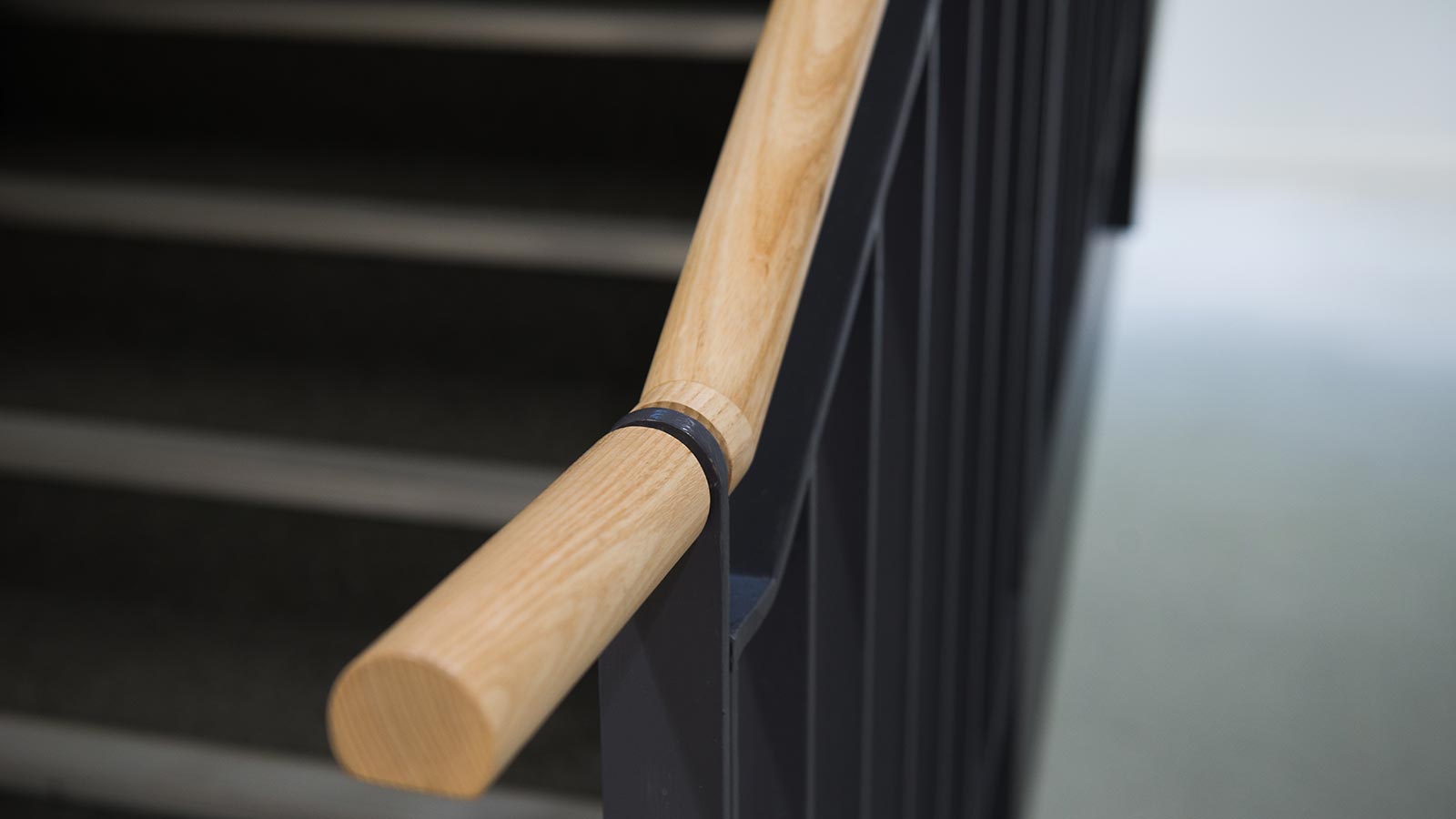

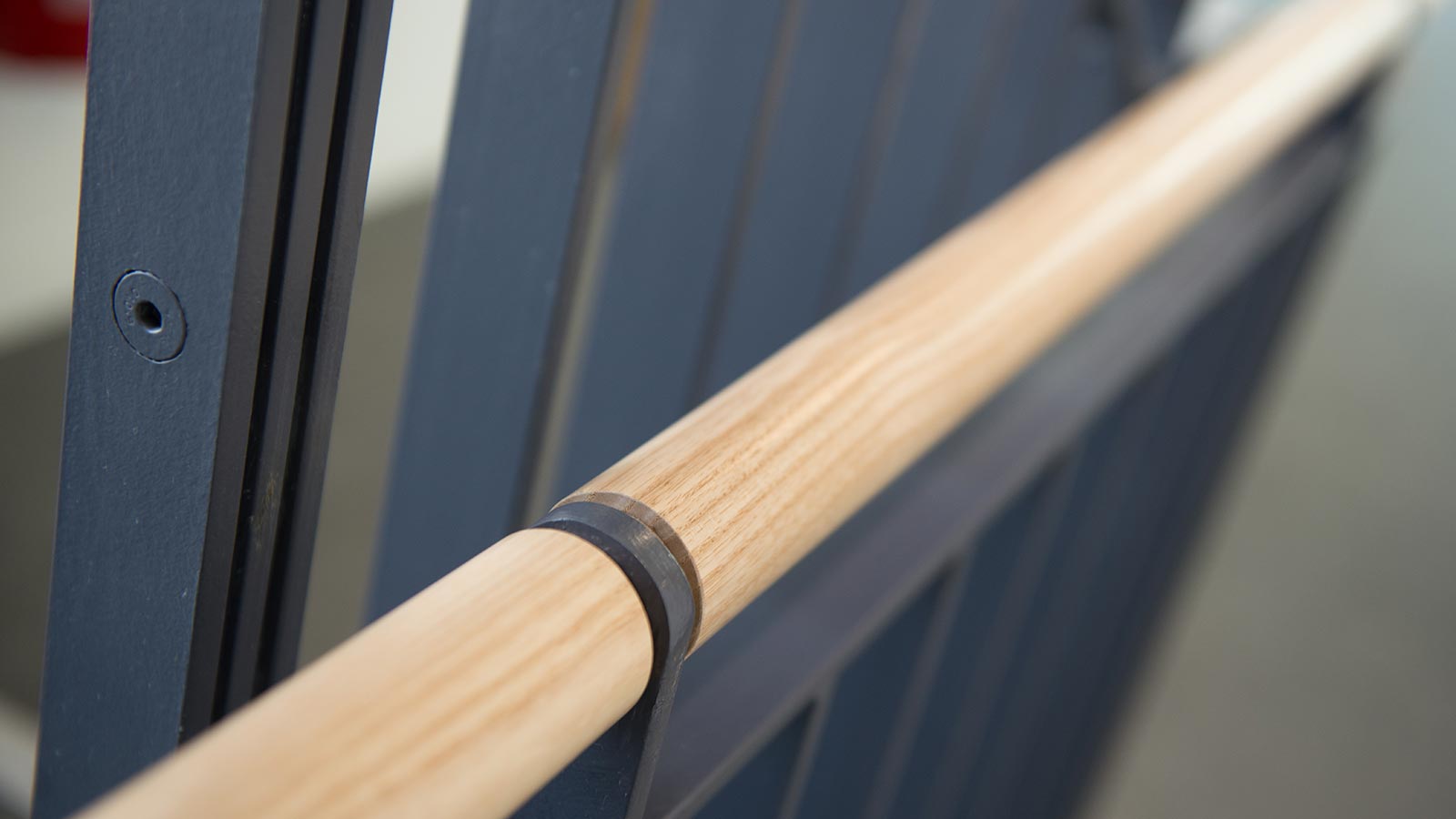

Metalwork can be provided in a variety of finishes including the finest stainless steel (brushed satin or mirror polished finish of an appropriate grade for location and use) or alternatively, mild steel in a professional paint or polyester powder coat finish to any RAL colour including the very latest in contemporary metallic finishes. For a softer touch, handrails can be provided in a variety of high quality, durable timber finishes.

For more industrial or back of house areas that require a more cost-effective solution a galvanised finish can be applied throughout.

All balustrade is designed and manufactured in-house to exacting quality standards, building regulation approval and DDA guidelines.

Please feel free to contact one of our friendly team to discuss your project and what we can do for you.
