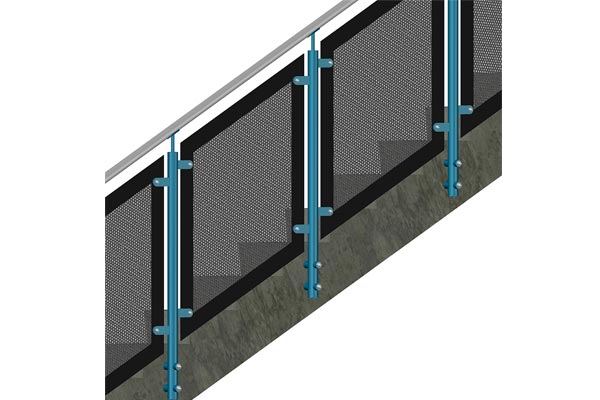

Neptune Balustrade Range

Neptune - Perforated Panel Range

Our Neptune balustrade range adds a timeless feel to any stair, terrace or balcony and can be manufactured for either internal or external use. Design is totally flexible and is tailored bespoke to your requirements providing an extremely robust and easy to maintain solution that is widely used on developments in the education and commercial sectors.

Typically heights of balustrade range from 900 to 1000 on the stair flights measured vertically from the tread nosing to the top of the hand rail. Landing balustrade heights typically range from 1000 to 1100 from finished floor level to top of hand rail.

Architectural Metalwork Installations Ltd recommend the landings balustrade heights to be at the maximum of 1100 as good practice.

Diameter of hand rail depends on whether the stair is required for disabled use and loads applied.


Mild Steel
Balusters = 48.3Ø*3.2 CHS
Spigot = 15Ø Solid Bar
Base Fixings = 2-33.7Ø*3.2 CHS / 2-21.3Ø*3.2 CHS
Fixings = 2-M12Ø Resin Anchor Bolts
Stainless Steel
Top Rail = 42.4Ø*2.6 CHS

Neptune - Perforated Panel Range
Neptune - Perforated Panel Range


Neptune - Perforated Panel Range
Neptune - Perforated Panel Range

Metalwork can be provided in a variety of finishes including the finest stainless steel (brushed satin or mirror polished finish of an appropriate grade for location and use) or alternatively, mild steel in a professional paint or polyester powder coat finish to any RAL colour including the very latest in contemporary metallic finishes. For a softer touch, handrails can be provided in a variety of high quality and durable timber finishes.

With our innovative laser cutting technology infill panels can be perforated to an almost limitless pattern or design offering a truly unique balustrade.

For more industrial projects or back of house areas that require a more cost-effective solution a galvanised finish can be utilised.

All balustrade is designed and manufactured in-house to exacting quality standards, building regulation approval and DDA guidelines.

Please feel free to contact one of our friendly team to discuss your project and what we can do for you.
